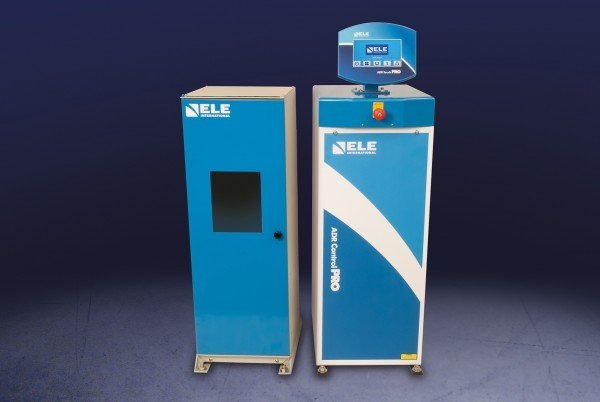

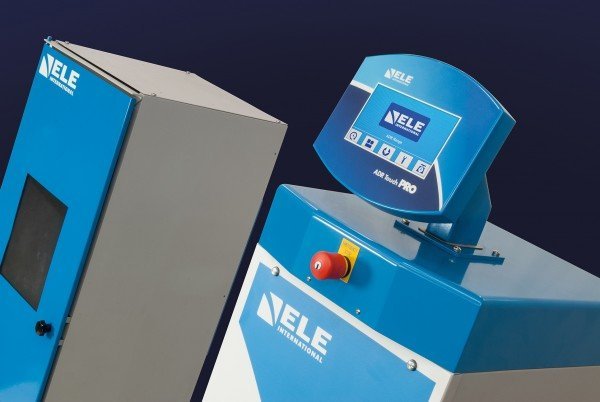

ADR 2000 Touch Control PRO Auto Compression Machine

Weight 595 kg Dimensions 41 × 63 × 120 cm Brand ELE International Frame Type Welded Capacity 2000kN Max Vertical Clearance (mm) 340 Max Horizontal Clearance (mm) 325 Platen Sizes (mm) Lower, Upper 222mm dia Max Ram Travel (mm) 50 Cubes (Concrete) (mm) Up to 150 Cylinders (Concrete) (mm) Up to 160 x 320 Blocks N/A Flexural Testing Via Flexural Frame TFV & ACV Yes Rapid Approach No Hydraulic Pump Variable Output Resolution 145 mm (5.7”) Touch Screen with Graphical Display Load v Time, Goodness of Test Yes Analysis of Trend Data Yes Multiple Language Support 4 External PC Yes, using custom PC App Download Test Data Yes, using custom PC App Printer Optional External Printer Print from PC Memory Storage 2GB = Stores over a million tests SD card
