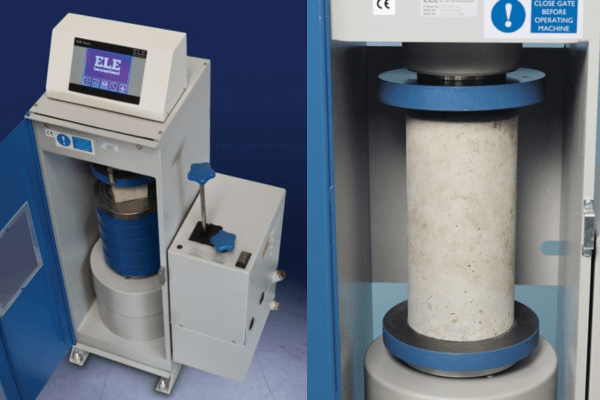

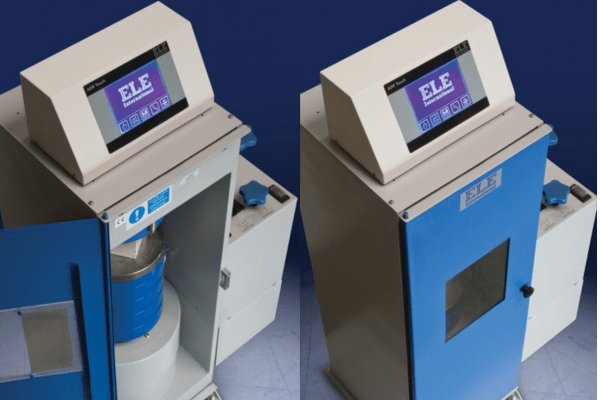

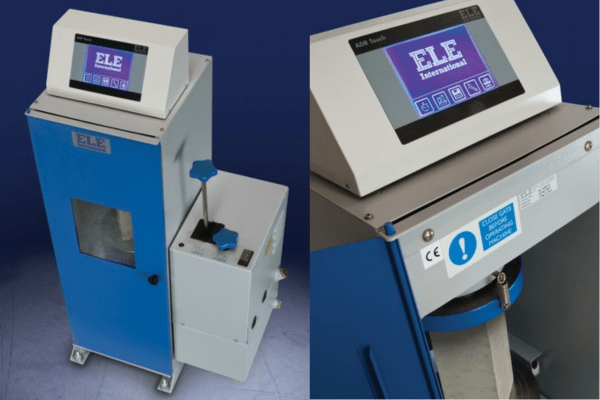

ADR Touch SOLO 2000 Semi-Automatic Compression Machine with Digital Readout

Weight 810 kg Dimensions 103 × 59 × 143 cm Brand Nl Test Model number NL 4000 X / 034HS Capacity 2000kN Max Horizontal Clearance (mm) 460 mm Relative Error ±1% Platen Sizes (mm) 295 mm Test Force Measurement Range (kN) 40 – 2000 Test Force Resolution 1/300000 FS Speed Control Accuracy Error ≤ ±2 % Set Value Piston Movement Direction Bidirectional Cylinder Max. Rising Speed of Piston 50 mm/min Max. Piston Stroke 250 mm Voltage Supply 220 – 240 V AC, 50 – 60 Hz, 1 ph
